PT110-XY Chinese 110cc Gas Cubs Mini Bikes Motorcycle

  • PT110-XY Chinese 110cc Gas Cubs Mini Bikes Motorcycle
  • PT110-XY Chinese 110cc Gas Cubs Mini Bikes Motorcycle
  • PT110-XY Chinese 110cc Gas Cubs Mini Bikes Motorcycle
  • PT110-XY Chinese 110cc Gas Cubs Mini Bikes Motorcycle
  • PT110-XY Chinese 110cc Gas Cubs Mini Bikes Motorcycle
  • PT110-XY Chinese 110cc Gas Cubs Mini Bikes Motorcycle
Model No.︰PT110-XY
Brand Name︰Pantera
Country of Origin︰China
Unit Price︰-
Minimum Order︰105 pc
Share on:

 Total 56 Related Items
Prev5152535455Next

Product Description
Engine Type: Single cylinder,wind-cooled, four stroke,
Displacement (ml): 107
Bore X Stroke (mm): 52.4x49.5
Compression Ratio: 9.1:1
Max. Power (kw/r/min) 5.2/8000
Max. Torque (N.m/r/min): 7.2/5000
Max. Speed (Km/h): ≥85
Lubrication: Pressure ,splash
Clutch Type: Multiplate wet clutch, Manual
Ignition: CDI
Starting System: Electric start
Transmission System: Chain drive
Front Brake: Drum brake
Rear Brake: Drum brake
Front Tire: 2.50-17
Rear Tire:   2.75-17
Battery: 12V/5Ah
L X W X H (mm): 1880x700x1180
Seat Height (mm): 750
Wheelbase (mm): 1230
Min. Ground Clearance (mm): 100
Max. Permissionable Weight (kg): 150
Rider Capacity: 1 Person
Dry. Weigth (kg): 95
Engine Oil (L): SAE15W/40
Fuel Tank Capacity (L): 3.5
Packing Size (mm): 1160×800×285   1160×800×600
Packing Weight (kg): 69kg
Container Loading(40HQ): 105PCS

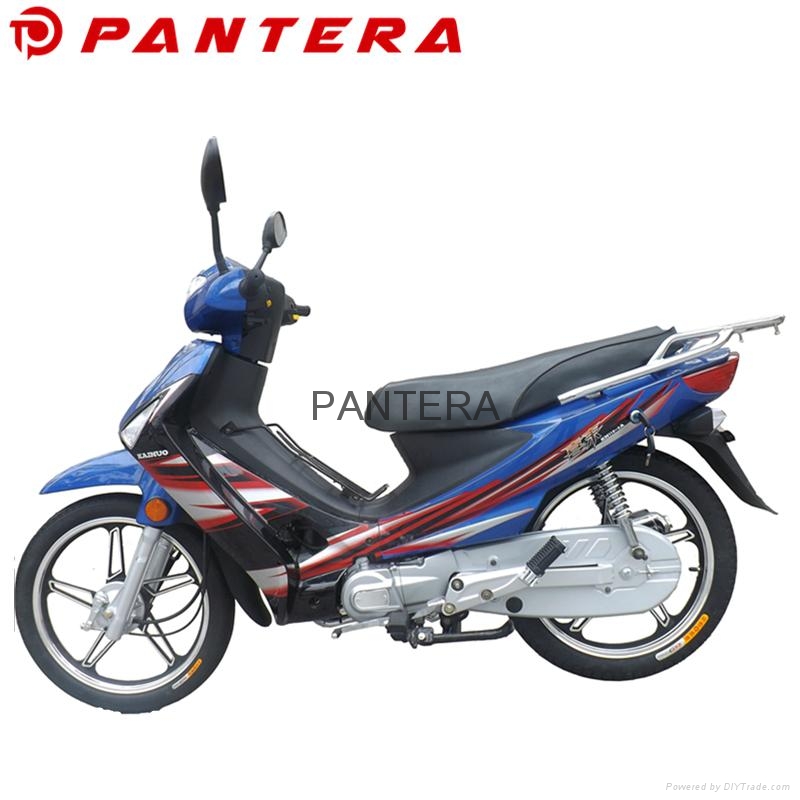

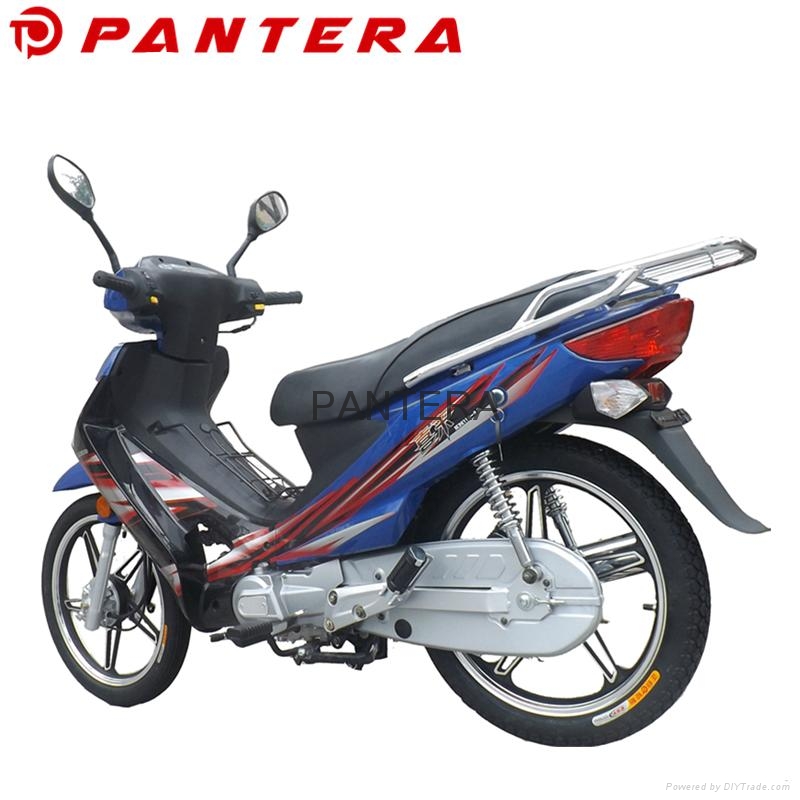

Product Image
