| Engine |
|
| Engine Type: |
Single cylinder,air-cooled, two stroke, |
| Displacement: |
80cc |
| Bore X Stroke (mm): |
52.4 x49.5 |
| Compression Ratio: |
9.1:1 |
| Max. Power (kw/r/min) |
5.2/8000 |
| Max. Torque (N.m/r/min): |
7.2/5000 |
| Max. Speed (Km/h): |
≥80 |
| Lubrication: |
Pressure ,splash |
| Clutch Type: |
Automatic |
| Ignition: |
CDI |
| Starting System: |
Electric/Kick start |
| Transmission System: |
Chain drive |
| CHASSIS |
|
| Front Brake: |
Drum Brake |
| Rear Brake: |
Drum Brake |
| Front Tire: |
2.50-17 |
| Rear Tire: |
2.75-17 |
| DIMENSIONS |
|
| L X W X H (mm): |
1885mmx 670mm x1050mm |
| Seat Height (mm): |
790 |
| Wheelbase (mm): |
1215 |
| Min. Ground Clearance (mm): |
150 |
| Max. Permissionable Weight : |
150 kg |
| Rider Capacity: |
1 Person |
| Battery |
12V/5Ah |
| OTHERS |
|
| Packing Size |
|
| Container Loading(40HQ): |
32pcs/20'GP, 105pcs/40'HQ CBU;
70pcs/20'GP , 160pcs/40'HQ CKD
|
|
|
|
|

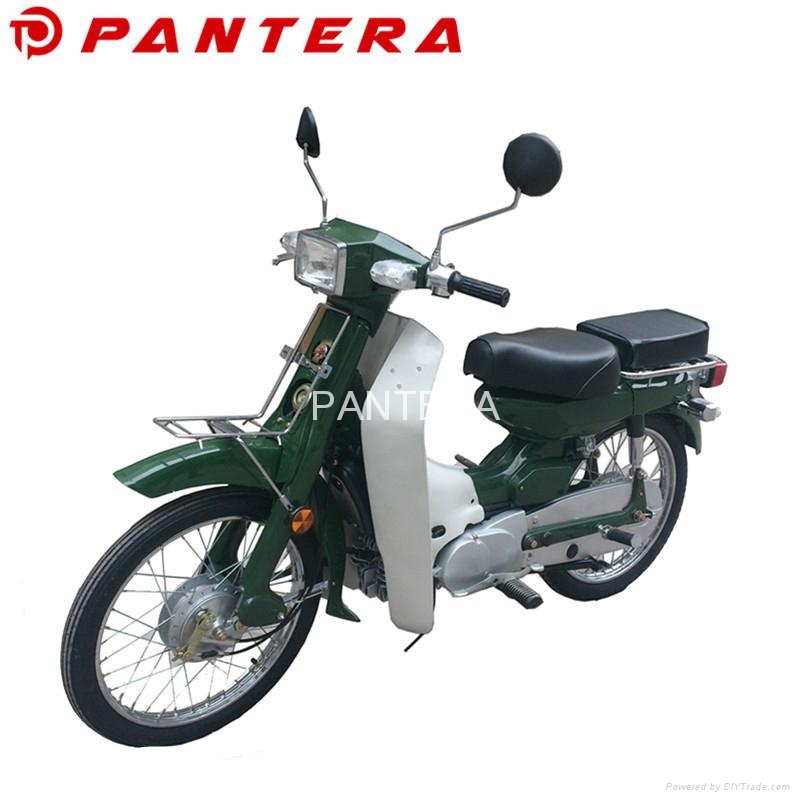

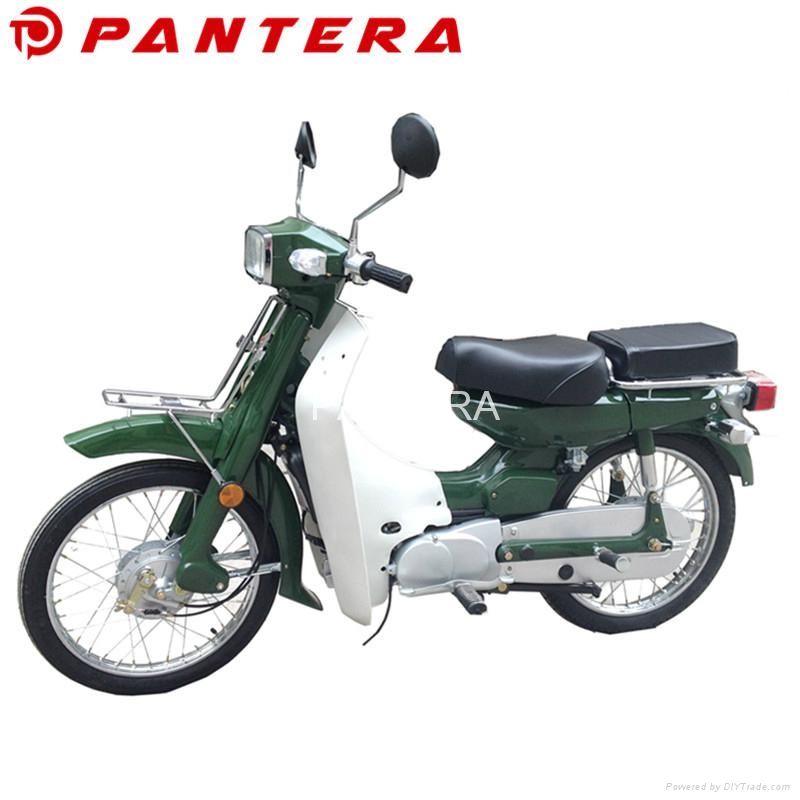

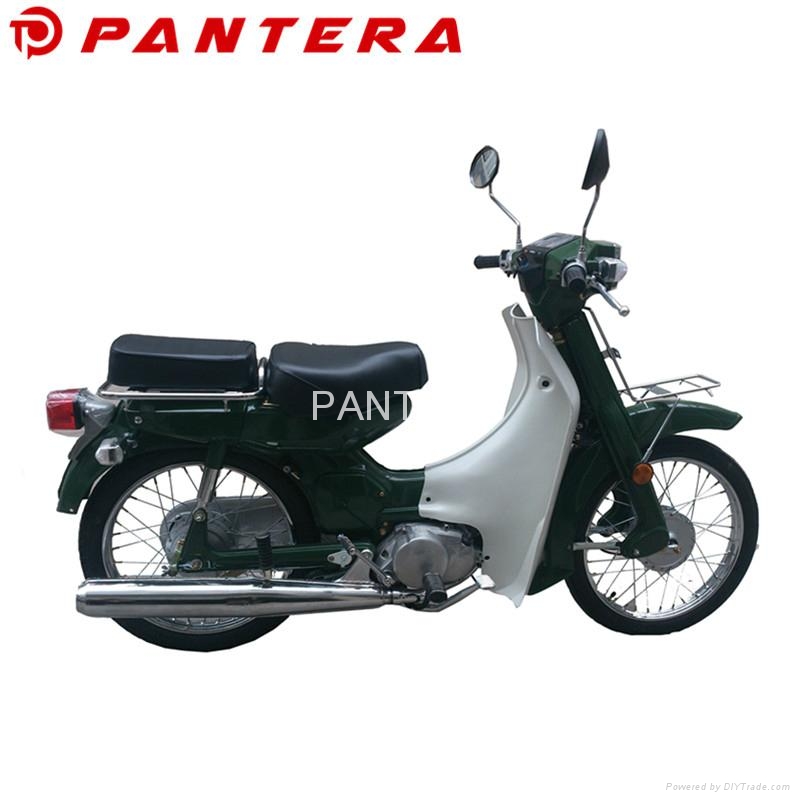

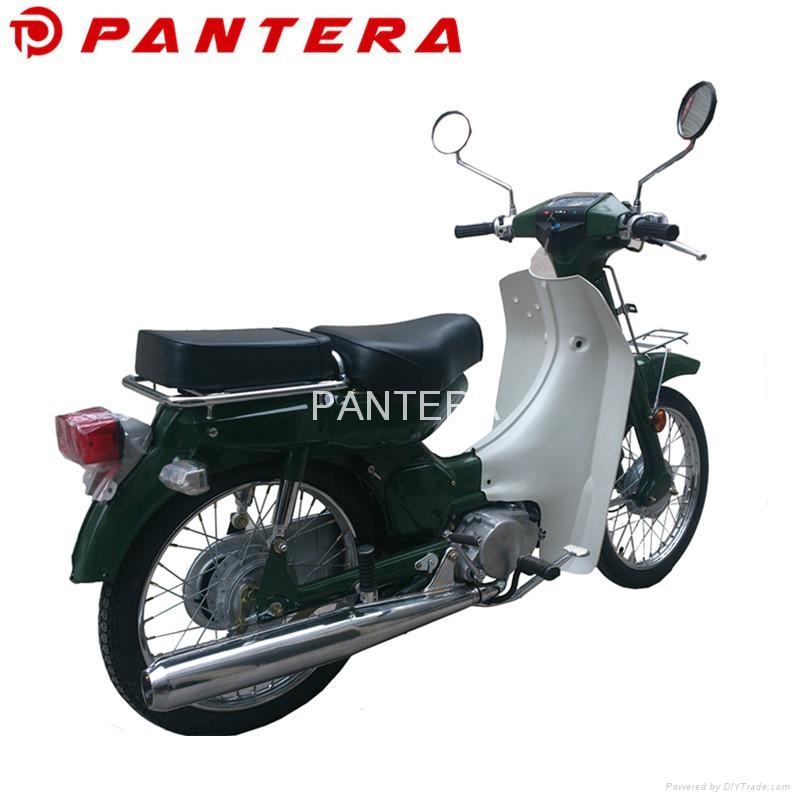

Product Image
|
