| ENGINE |
|
| Engine Type: |
Single cylinder,wind-cooled, four stroke |
| Displacement(ml): |
107 |
| Bore X Stroke(mm): |
52.4x49.5 |
| Compression Ratio: |
9.1:1 |
| Max. Power(kw/r/min): |
5.2/8000 |
| Max. Torque(N.m/r/min): |
7.2/5000 |
| Max. Speed(Km/h): |
≥85 |
| Lubrication: |
Pressure ,splash |
| Clutch Type: |
Multiplate wet clutch, Automatic |
| Ignition: |
CDI |
| Starting System: |
E-start |
| Transmission System: |
Chain drive |
| The left and right steering angle |
Left40º Right45º |
| CHASSIS |
|
| Front Brake: |
Disc brake |
| Rear Brake: |
Drum brake |
| Front Tire: |
2.50-17 |
| Rear Tire: |
2.75-17 |
| Battery: |
12V/5Ah |
| DIMENSIONS |
|
| L * W * H (mm): |
1900*1140*690 |
| Seat Height(mm): |
770 |
| Wheelbase(mm): |
1265 |
| Min. Ground Clearance(mm): |
120 |
| Max. Permissionable Weight(kg): |
150 |
| Rider Capacity: |
1 Person |
| Dry. Weigth(kg): |
89 |
| Engine Oil(L): |
1L SAE15W/40 |
| Fuel Tank Capacity(L): |
3.5 |
| Roll angle |
12º |
| Packing Size(mm): |
1700×460×860 |
|
|
|
|

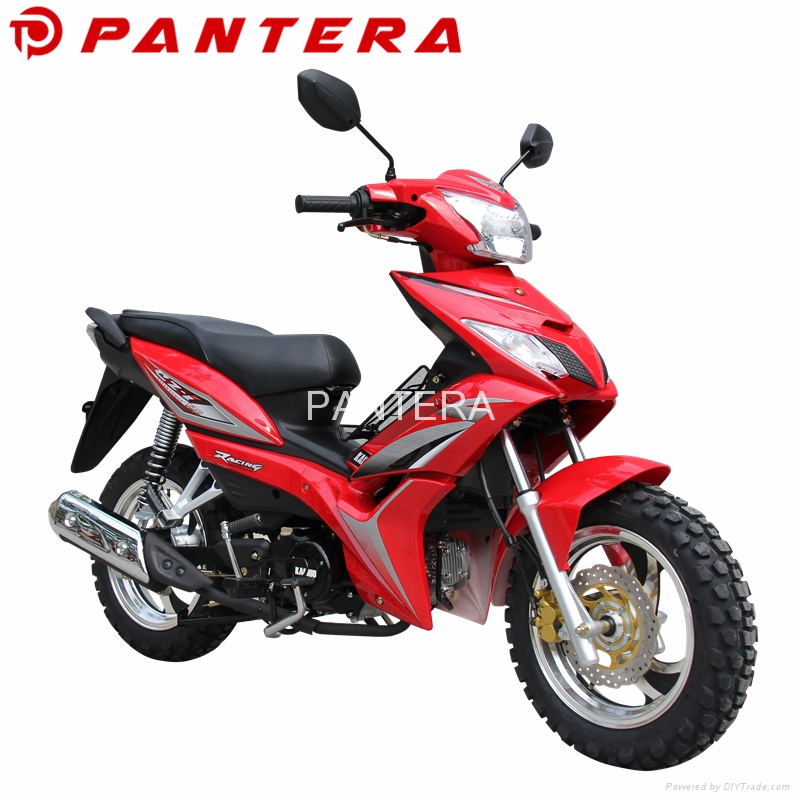

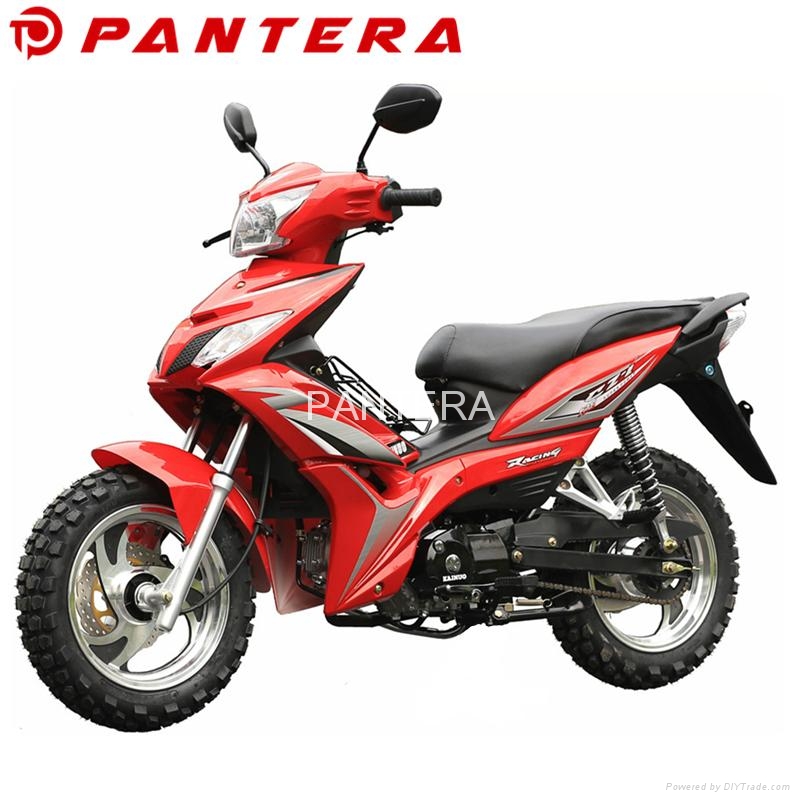

Product Image
|
