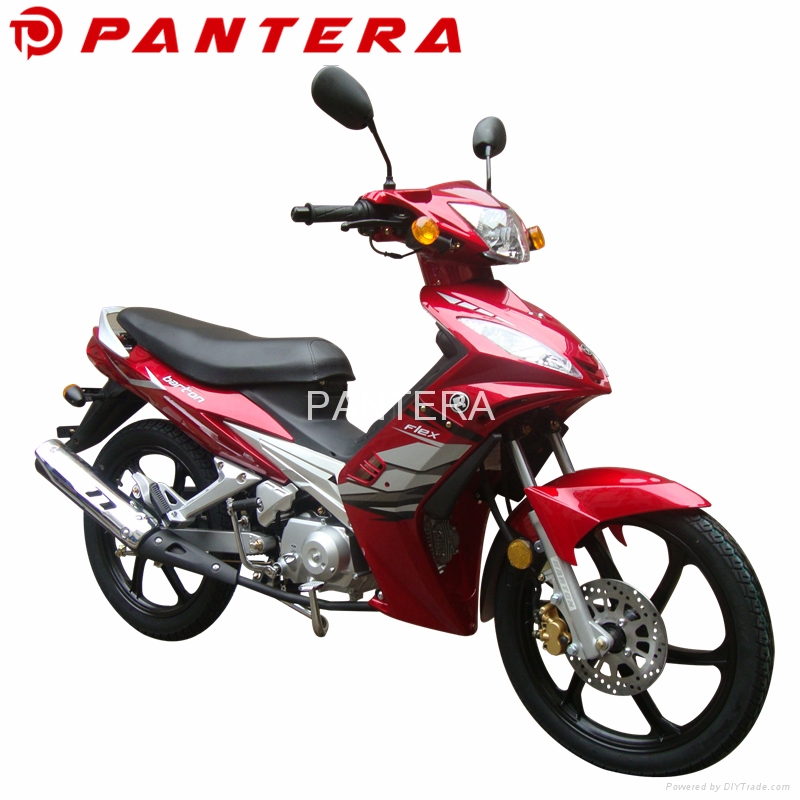

PT110-ZS 110cc Cheap Motorcycle Cub Moped Motos

Model No.︰PT110-ZS
Brand Name︰Pantera
Country of Origin︰China
Unit Price︰-
Minimum Order︰105 unit
Share on:

 Total 56 Related Items
Prev3637383940Next

Product Description
ENGINE
Engine Type: Single cylinder,wind-cooled, four stroke
Displacement(ml): 107
Bore X Stroke(mm): 52.4x49.5
Compression Ratio: 9.1:1
Max. Power(kw/r/min): 5.2/8000
Max. Torque(N.m/r/min): 7.2/5000
Max. Speed(Km/h): ≥85
Lubrication: Pressure ,splash
Clutch Type: Multiplate wet clutch, Automatic
Ignition: CDI
Starting System: E-start
Transmission System: Chain drive
The left and right steering angle Left40º  Right42º
CHASSIS
Front Brake: Drum brake
Rear Brake: Drum brake
Front Tire: 2.50-17
Rear Tire: 2.75-17
Battery:  12V/5Ah
DIMENSIONS
L * W * H (mm): 1905*665*1120
Seat Height(mm): 790
Wheelbase(mm): 1240
Min. Ground Clearance(mm): 150
Max. Permissionable Weight(kg): 120
Rider Capacity: 1 Person
Dry. Weigth(kg): 84.5
Engine Oil(L): 1L SAE15W/40
Fuel Tank Capacity(L): 3.5
Roll angle 11º
Packing Size(mm): 1700×460×870
