| ENGINE |
|
| Engine Type: |
Single cylinder,wind-cooled, four stroke |
| Displacement(ml): |
223 |
| Bore X Stroke(mm): |
65.5×66.2 |
| Compression Ratio: |
9.25:1 |
| Max. Power(kw/r/min): |
12/7500 |
| Max. Torque (N.m/r/min): |
18/5500 |
| Max. Speed (Km/h): |
≥94.5 |
| Lubrication: |
Pressure ,splash |
| Clutch Type: |
Multiplate wet clutch, Manual |
| Ignition: |
CDI |
| Starting System: |
E-start |
| Transmission System: |
Chain drive |
| The left and right steering angle |
Left38º Right38º |
| CHASSIS |
|
| Front Brake: |
Disc brake |
| Rear Brake: |
Disc brake |
| Front Tire: |
4.60-17 |
| Rear Tire: |
90/100-21 |
| Battery: |
12V/6.5Ah |
| DIMENSIONS |
|
| L * W * H (mm): |
2130*900*1230 |
| Seat Height (mm): |
925 |
| Wheelbase(mm): |
1365 |
| Min. Ground Clearance(mm): |
285 |
| Max. Permissionable Weight(kg): |
150 |
| Rider Capacity: |
1 Person |
| Dry. Weigth(kg): |
125 |
| Engine Oil(L): |
1L SAE15W/40 |
| Fuel Tank Capacity(L): |
12.5L |
| Roll angle |
12º |
| Packing Size(mm): |
1830×460×860 |
| Packing Weight(kg): |
143 |
|
|
|
|

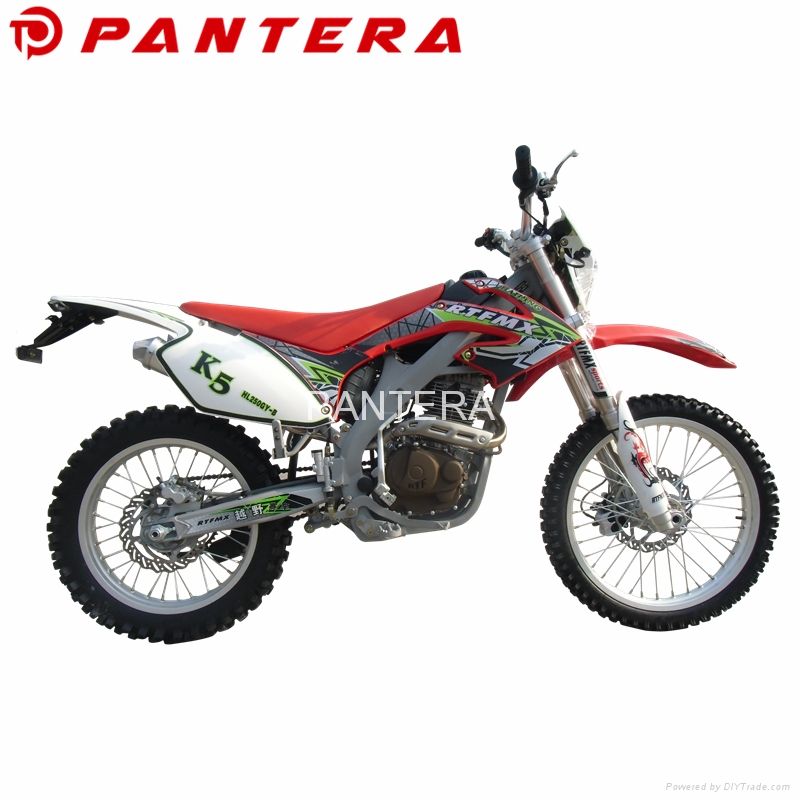

Product Image
|
