| ENGINE |
|
| Engine Type: |
Single cylinder,air-cooled, Four-stroke ,ignition |
| Displacement(ml): |
71.8/100/125 |
| Bore X Stroke(mm): |
47.0X41.4 |
| Compression Ratio: |
8.8:1 |
| Max. Power(kw/r/min): |
3.7/7500 |
| Max. Torque(N.m/r/min): |
4.5/6000 |
| Max. Speed(Km/h): |
≥75 |
| Lubrication: |
Pressure ,splash |
| Clutch Type: |
Multiplate wet clutch |
| Ignition: |
C.D.I |
| Starting System: |
Electric/Kick start |
| Transmission System: |
Chain drive |
| CHASSIS |
|
| Front Brake: |
Drum Brake |
| Rear Brake: |
Drum brake |
| Front Tire: |
2.5-17/175 |
| Rear Tire: |
3.00-17/200 |
| Battery: |
12V/5Ah |
| DIMENSIONS |
|
| L * W * H (mm): |
1840x795x1010 |
| Seat Height(mm): |
700 |
| Wheelbase(mm): |
1175 |
| Packing Size (mm): |
1580x370x780 |
| Container Loading(20FT/40GP/40HQ): |
63/138/138 |
|
|
|
|

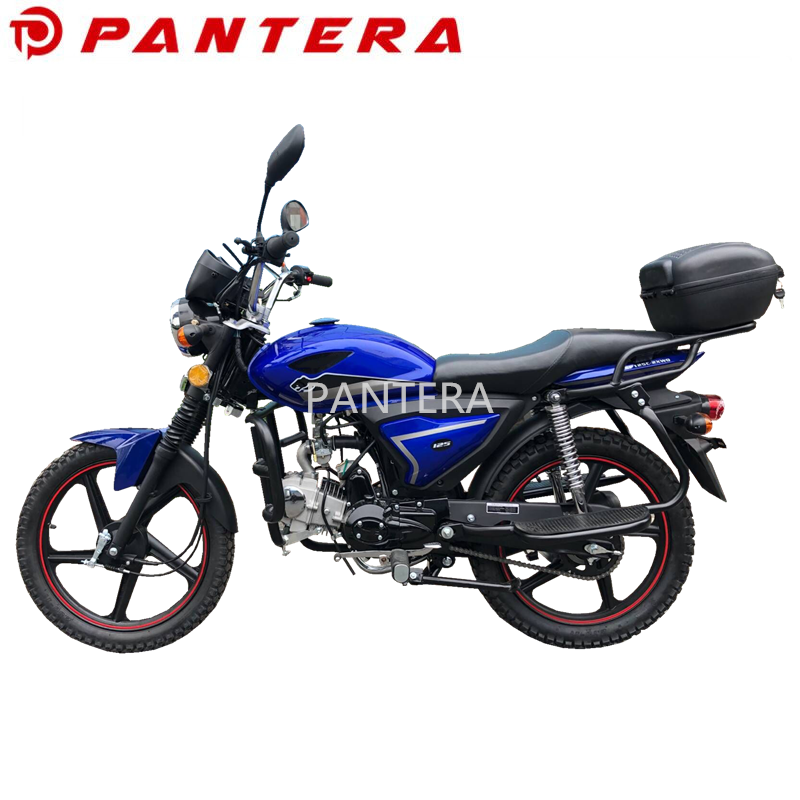

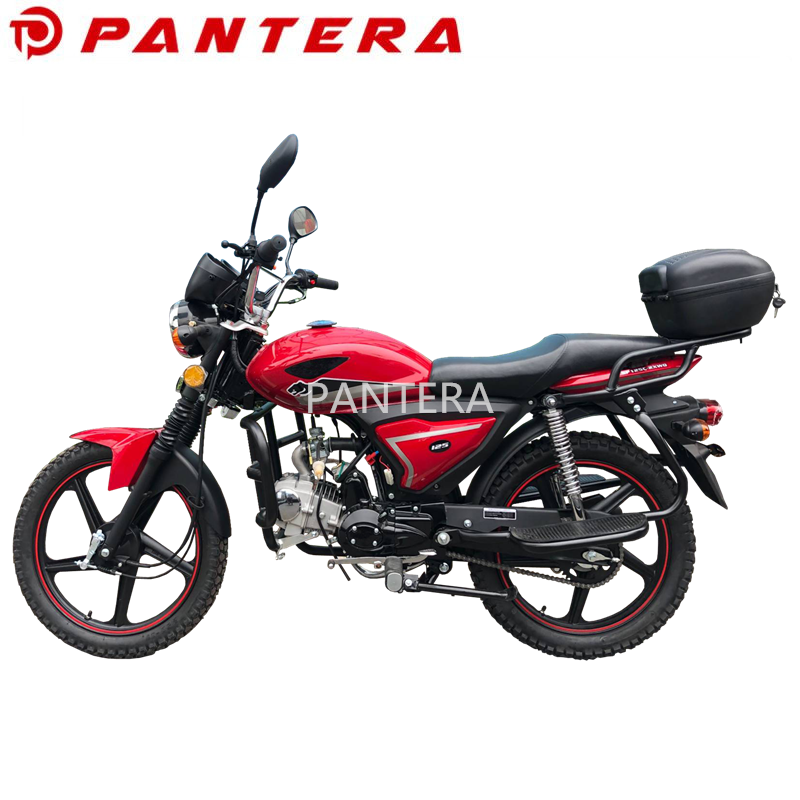

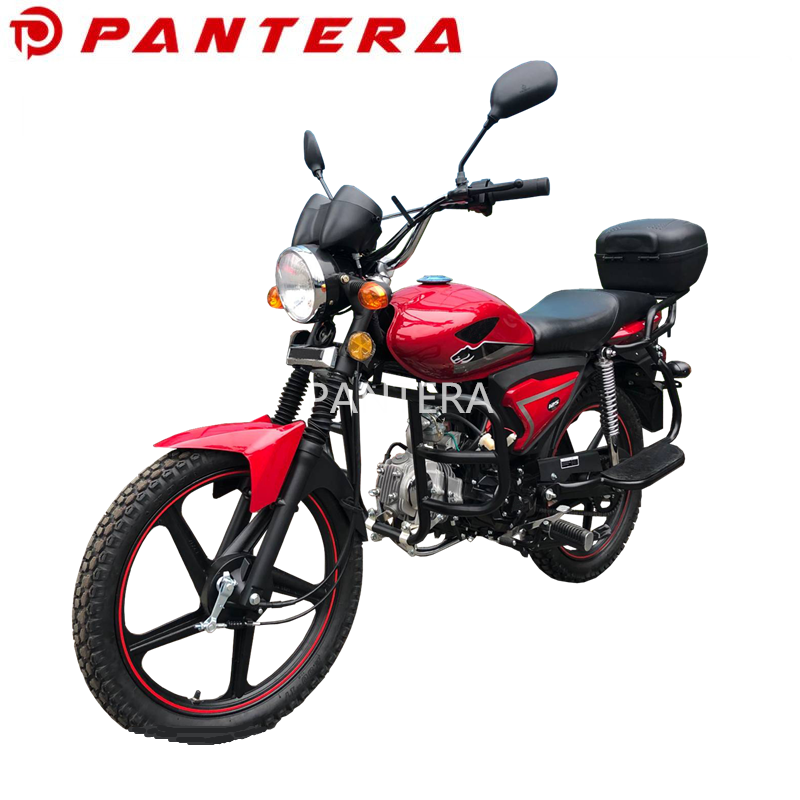

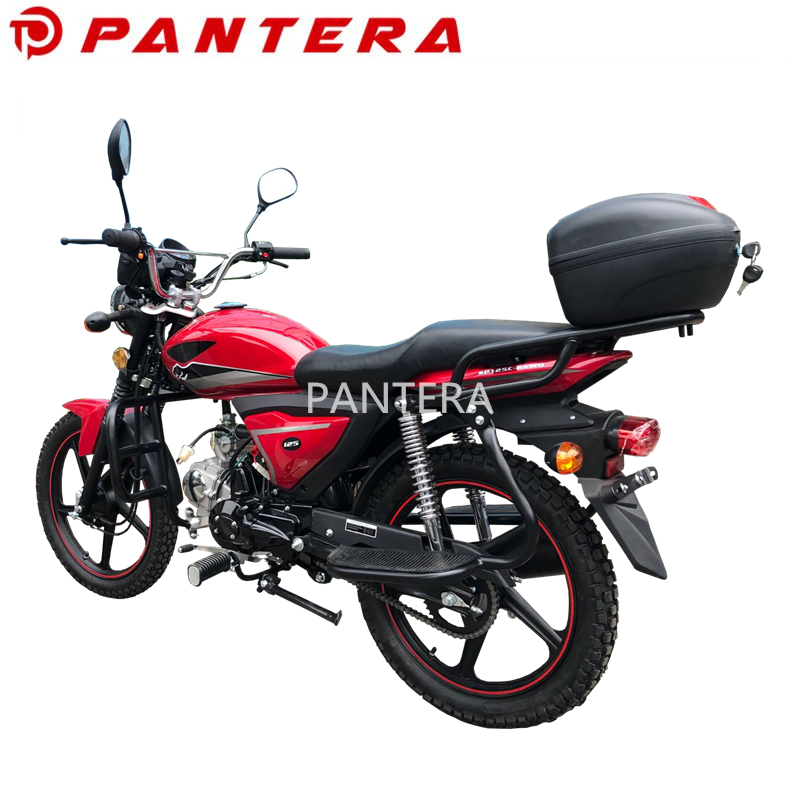

Product Image
|
