| ENGINE |
|
| Engine Type: |
Single cylinder,wind-cooled, four stroke |
| Displacement(ml): |
149 |
| Bore X Stroke(mm): |
62×49.5 |
| Compression Ratio: |
9.0:1 |
| Max. Power(kw/r/min): |
8.5/8500 |
| Max. Torque (N.m/r/min): |
10.5/6500-7500 |
| Max. Speed (Km/h): |
≥90 |
| Lubrication: |
Pressure ,splash |
| Clutch Type: |
Multiplate wet clutch, Manual |
| Ignition: |
CDI |
| Starting System: |
Electric/Kick |
| Transmission System: |
Chain drive |
| CHASSIS |
|
| Front Brake: |
Drum brake |
| Rear Brake: |
Drum brake |
| Front Tire: |
2.75-18 |
| Rear Tire: |
3.00-18 |
| Battery: |
12V/7Ah |
| DIMENSIONS |
|
| L * W * H (mm): |
2150*750*1070 |
| Seat Height (mm): |
780 |
| Wheelbase(mm): |
1290 |
| Min. Ground Clearance(mm): |
180 |
| Max. Permissionable Weight(kg): |
120 |
| Rider Capacity: |
1 Person |
| Dry. Weigth(kg): |
59 |
| Engine Oil(L): |
SAE15W/40 |
| Fuel Tank Capacity(L): |
12L |
| Roll angle |
12º |
| Packing Size(mm): |
1580×460×780 1650×770×840 |
| Container Loading（40HQ）: |
Single package:111units Double package:126units |
|
|
|
|

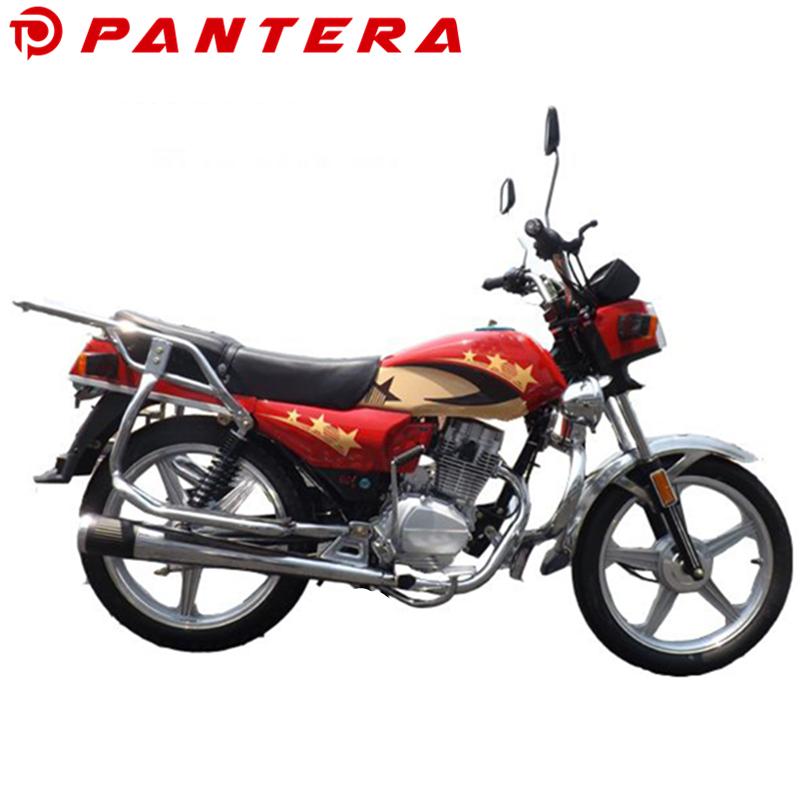

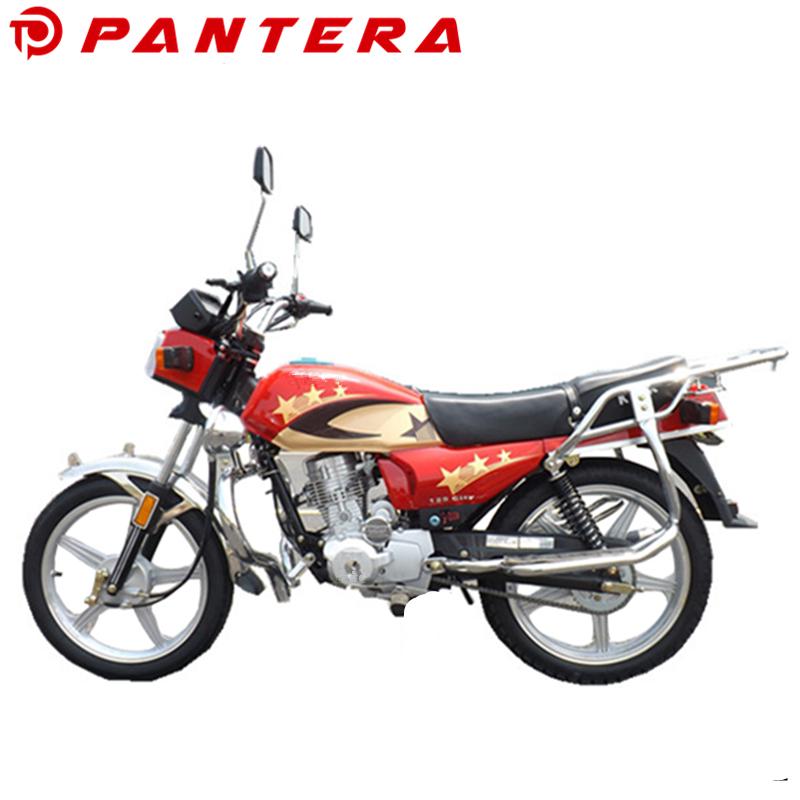

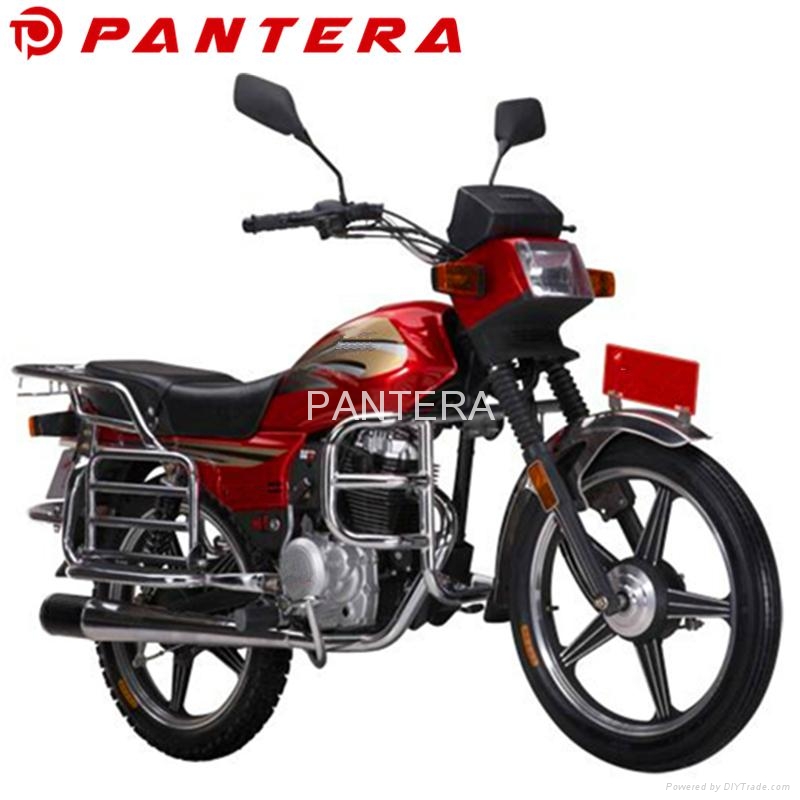

Product Image
|
