| ENGINE |
|
| Engine Type: |
Single cylinder,wind-cooled, four stroke |
| Displacement(ml): |
149 |
| Bore X Stroke(mm): |
62x49.5 |
| Compression Ratio: |
9.0:1 |
| Max. Power(kw/r/min): |
8.5/8500 |
| Max. Torque (N.m/r/min): |
1.0/6500-7500 |
| Max. Speed (Km/h): |
≥90 |
| Lubrication: |
Pressure ,splash |
| Clutch Type: |
Multiplate wet clutch, Manual |
| Ignition: |
CDI |
| Starting System: |
E-start |
| Transmission System: |
Chain drive |
| CHASSIS |
|
| Front Brake: |
Disc/Drum brake |
| Rear Brake: |
Drum brake |
| Front Tire: |
2.75-18 |
| Rear Tire: |
90/90-18 |
| Battery: |
12V/7Ah |
| DIMENSIONS |
|
| L * W * H (mm): |
2010*730*1080 |
| Seat Height (mm): |
770 |
| Wheelbase(mm): |
1340 |
| Min. Ground Clearance(mm): |
120 |
| Max. Permissionable Weight(kg): |
150 |
| Rider Capacity: |
1 Person |
| Dry. Weigth(kg): |
118 |
| Engine Oil(L): |
1.1L SAE15W/40 |
| Fuel Tank Capacity(L): |
14.5L |
| Container Loading(40HQ): |
96 |
| Packing Size(mm): |
1840×460×840 |
| Packing Weight(kg): |
138 |
|
|
|
|

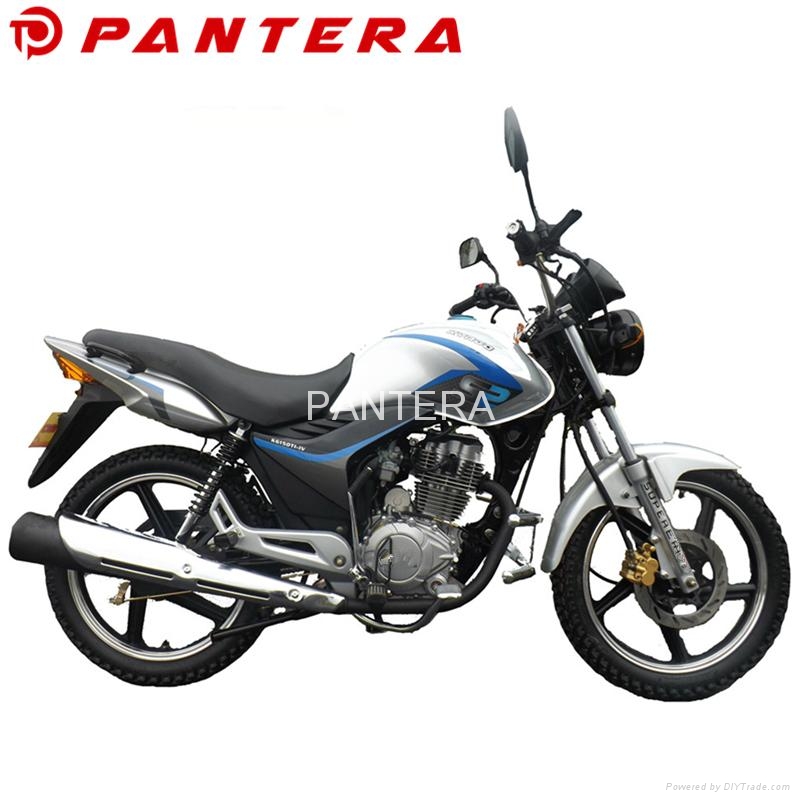

Product Image
|
